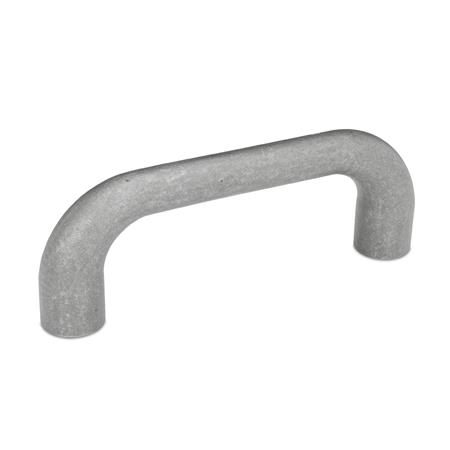

Bügelgriffe GN 225, Stahlguss – Ganter GN 225-18-BL

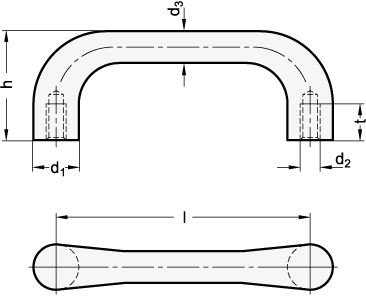

Dimensional drawing Ganter GN 225-18-BL
Preview: Bügelgriffe GN 225, Stahlguss – Ganter GN 225-18-BL
Preview: Dimensional drawing Ganter GN 225-18-BL
Bügelgriffe GN 225, Stahlguss
Bügelgriffe GN 225, Stahlguss – Ganter GN 225-18-BL
Dimensional drawing Ganter GN 225-18-BL
Mobile Preview: Bügelgriffe GN 225, Stahlguss – Ganter GN 225-18-BL
Mobile Preview: Dimensional drawing Ganter GN 225-18-BL

Bügelgriffe GN 225, Stahlguss

Product No.:
225-18-BL
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d118
    OberflächeBL - blank, gleitgeschliffen
    WerkstoffGS45 - Stahlguss
    d2M 6
    d312
    h42
    Länge l100
    t min.12
    RoHSJa
    Gewicht0,190 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 225
    Order designationGN 225-18-BL
    EAN4045525100299
    Manufacturer designation (German)Bügelgriffe, Stahlguss
    Order unitPiece
    Customs tariff number83024900
    eCl@ss 5.1.423010103
