Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 30 |
|---|
| Gewinde d2 | M 6 |
|---|
| Länge l1 | 250 |
|---|
| Oberfläche | NG - geschliffen, matt glänzend |
|---|
| b | 18 |
|---|
| h | 60 |
|---|
| l2 | 280 |
|---|
| l3 | 220 |
|---|
| l4 | 315 |
|---|
| t min. M6 | 12 |
|---|
| M8 | 15 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,437 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|

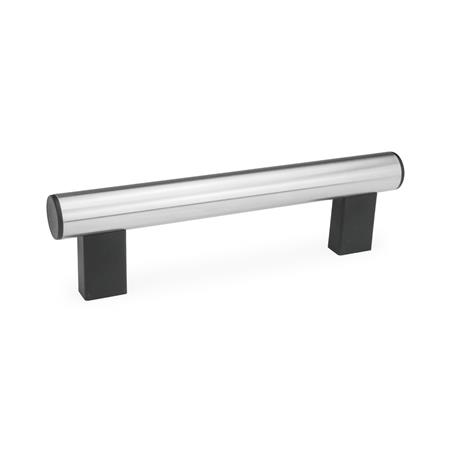

| Standard part | GN 666 |
|---|
| Order designation | GN 666-30-M6-250-NG |
|---|
| EAN | 4045525581456 |
|---|
| Manufacturer designation (German) | Rohrgriffe, Aluminium- / Edelstahlrohr |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
