Technical data (manufacturer information, German terms)
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| Länge l1 | 132 |
|---|
| Bohrung d1 | 8,5 |
|---|
| Farbe | SW - schwarz, RAL 9005, matt |
|---|
| PP | SW |
|---|
| SV | SW |
|---|
| b | 27 |
|---|
| d2 | 13,5 |
|---|
| h1 | 45 |
|---|
| h2 | 7,5 |
|---|
| l2 | 150 |
|---|
| l3 | 108 |
|---|
| s | 7 |
|---|
| t | 8,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,047 kg |
|---|

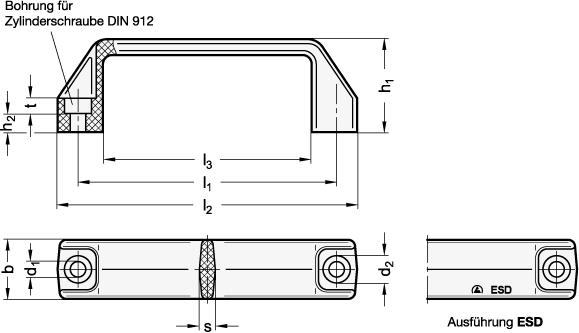

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 528 |
|---|
| Order designation | GN 528-PA-132-8,5-SW |
|---|
| EAN | 4045525277373 |
|---|
| Manufacturer designation (German) | Bügelgriffe, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010103 |
|---|
