Technical data (manufacturer information, German terms)
| Länge l1 | 100 |
|---|
| Bohrung d2 | B 4,5 |
|---|
| Farbe | SG - schwarzgrau, RAL 7021, matt |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| a | 10 |
|---|
| Griffbreite | 13 |
|---|
| b2 | 38 |
|---|
| h1 | 30 |
|---|
| h2 | 21 |
|---|
| l2 | 80 |
|---|
| t1 | 10 |
|---|
| t2 | 14 |
|---|
| F1 in N M6 | 3000 |
|---|
| B4,5 | 700 |
|---|
| F2 in N M6 | 1900 |
|---|
| B4,5 | 900 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,047 kg |
|---|

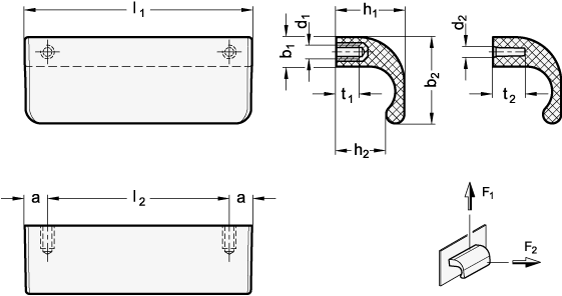

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 130 |
|---|
| Order designation | GN 130-100-B4,5-SG |
|---|
| EAN | 4045525920514 |
|---|
| Manufacturer designation (German) | Griffleisten, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
