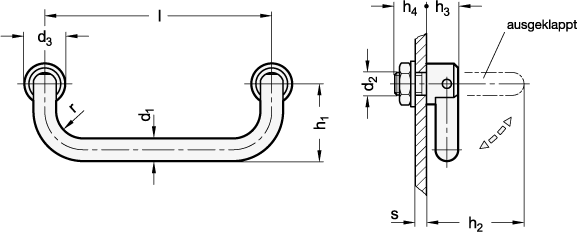

Dimensional drawing Ganter GN 425.2-ST-10-100-CR
Preview: Klappgriffe GN 425.2, Stahl – Ganter GN 425.2-ST-10-100-CR
Preview: Dimensional drawing Ganter GN 425.2-ST-10-100-CR
Klappgriffe GN 425.2, Stahl
Klappgriffe GN 425.2, Stahl – Ganter GN 425.2-ST-10-100-CR
Dimensional drawing Ganter GN 425.2-ST-10-100-CR
Mobile Preview: Klappgriffe GN 425.2, Stahl – Ganter GN 425.2-ST-10-100-CR
Mobile Preview: Dimensional drawing Ganter GN 425.2-ST-10-100-CR

Klappgriffe GN 425.2, Stahl

Product No.:
425.2-ST-10-100-CR
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    WerkstoffST - Stahl
    d110
    Länge l100
    OberflächeCR - verchromt
    d2M 10 x 1
    d318
    h134
    h243
    h314
    h414
    r12
    s max.6
    RoHSJa
    Gewicht0,150 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 425.2
    Order designationGN 425.2-ST-10-100-CR
    EAN4045525248465
    Manufacturer designation (German)Klappgriffe, Stahl
    Order unitPiece
    Customs tariff number83024900
    eCl@ss 5.1.423010103
