Rohrgriffe GN 333.6, Edelstahl – Ganter GN 333.6-28-250

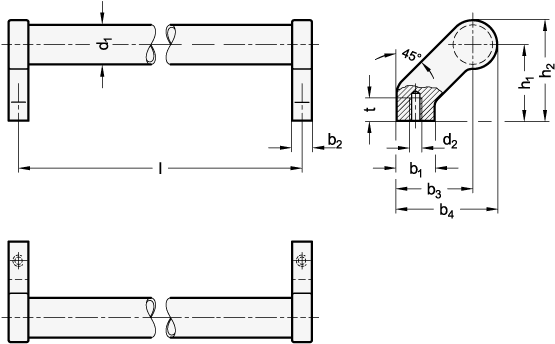

Dimensional drawing Ganter GN 333.6-28-250
Preview: Rohrgriffe GN 333.6, Edelstahl – Ganter GN 333.6-28-250
Preview: Dimensional drawing Ganter GN 333.6-28-250
Rohrgriffe GN 333.6, Edelstahl
Rohrgriffe GN 333.6, Edelstahl – Ganter GN 333.6-28-250
Dimensional drawing Ganter GN 333.6-28-250
Mobile Preview: Rohrgriffe GN 333.6, Edelstahl – Ganter GN 333.6-28-250
Mobile Preview: Dimensional drawing Ganter GN 333.6-28-250

Rohrgriffe GN 333.6, Edelstahl

Product No.:
333.6-28-250
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d128
    Länge l250
    WerkstoffNI - Edelstahl
    b125
    b214
    b350
    b466
    GewindeM 8
    h150
    h266
    t min.15
    RoHSJa
    Gewicht0,670 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 333.6
    Order designationGN 333.6-28-250
    EAN4045525563544
    Manufacturer designation (German)Rohrgriffe, Edelstahl
    Order unitPiece
    Customs tariff number83024900
    eCl@ss 5.1.423010190
