Technical data (manufacturer information, German terms)
| Griffdurchmesser d | 10 |
|---|
| Länge l1 | 128 |
|---|
| Oberfläche | SW - schwarz, RAL 9005, strukturmatt |
|---|
| Werkstoff | ST - Stahl |
|---|
| l2 ≈ | 146 |
|---|
| h ≈ | 35 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,086 kg |
|---|

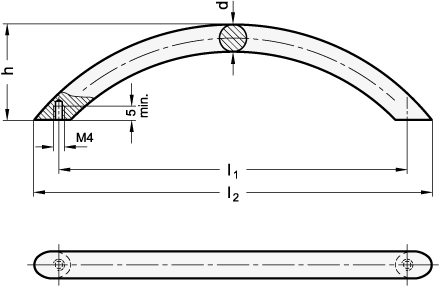

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 424.1 |
|---|
| Order designation | GN 424.1-10-128-SW |
|---|
| EAN | 4045525659506 |
|---|
| Manufacturer designation (German) | Bogengriffe, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
