Technical data (manufacturer information, German terms)
| Werkstoff Griff | NI - Edelstahl |
|---|
| Länge l1 | 120 |
|---|
| Oberfläche Schale | SR - silber, RAL 9006, strukturmatt |
|---|
| Form | B - mit Federrückstellung des Griffs in die eingeklappte Stellung |
|---|
| l2 | 170 |
|---|
| l3 | 65 |
|---|
| l4 | 141 |
|---|
| l5 | 142 |
|---|
| l6 | 60 |
|---|
| m1 | 154 |
|---|
| m2 | 49 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,378 kg |
|---|

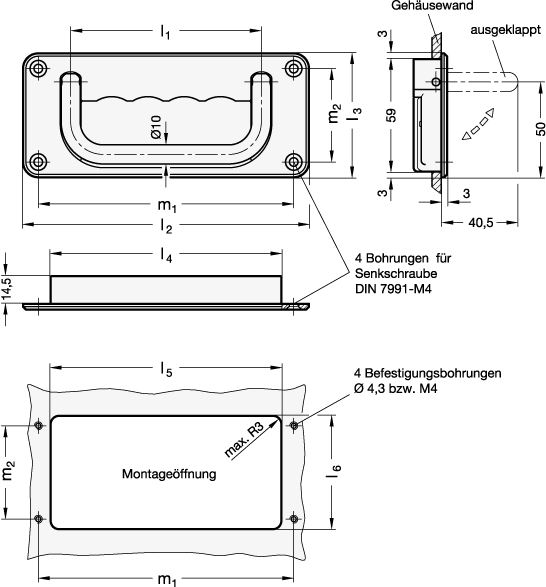

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data

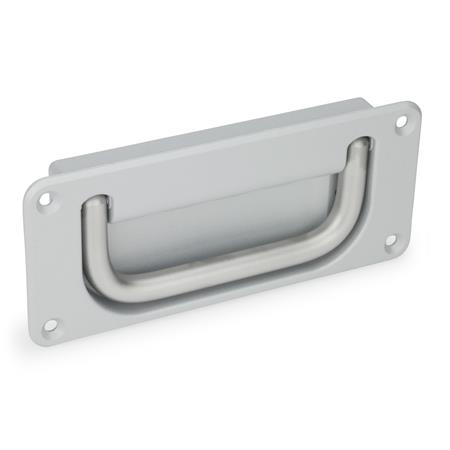

| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 425.8 |
|---|
| Order designation | GN 425.8-120-NI-SR-B |
|---|
| EAN | 4045525914858 |
|---|
| Manufacturer designation (German) | Schalen-Klappgriffe |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23010103 |
|---|
