Technical data (manufacturer information, German terms)
| Griffbreite b | 20 |
|---|
| Länge l1 | 192 |
|---|
| Form | A - Montage von der Rückseite (Gewinde-Sackloch) |
|---|
| Oberfläche | SR - silber, RAL 9006, strukturmatt |
|---|
| Werkstoff | AL - Aluminium |
|---|
| a | 13 |
|---|
| Gewinde | M 6 |
|---|
| h1 ≈ | 50 |
|---|
| l2 ≈ | 221 |
|---|
| t1 min. | 8 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,125 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 565.4 |
|---|
| Order designation | GN 565.4-20-192-A-SR |
|---|
| EAN | 4045525766358 |
|---|

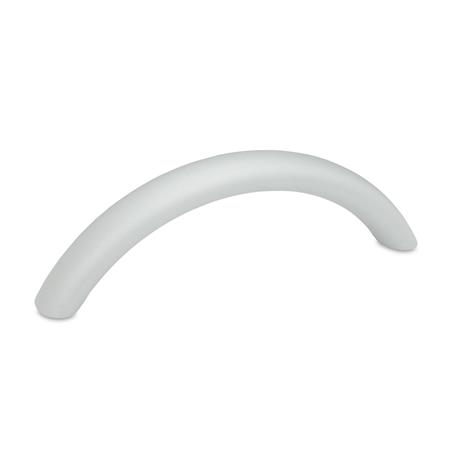

| Manufacturer designation (German) | Bogengriffe, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
