Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 30 |
|---|
| l1 | 600 |
|---|
| Form | A - Montage von der Rückseite (Gewinde-Sackloch) |
|---|
| Oberfläche | EL - eloxiert, naturfarben |
|---|
| Werkstoff | AL - Aluminium |
|---|
| Gewinde | M 8 |
|---|
| b1 | 27 |
|---|
| b2 | 17 |
|---|
| h1 | 51 |
|---|
| h2 | 68 |
|---|
| t min. | 15 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,600 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 333.1 |
|---|
| Order designation | GN 333.1-30-600-A-EL |
|---|
| EAN | 4045525805330 |
|---|

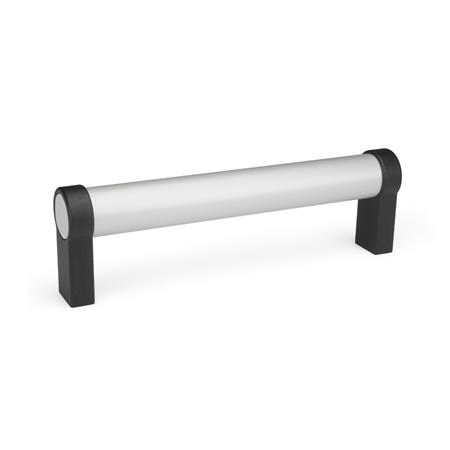

| Manufacturer designation (German) | Rohrgriffe, Aluminium / Zink-Druckguss |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
