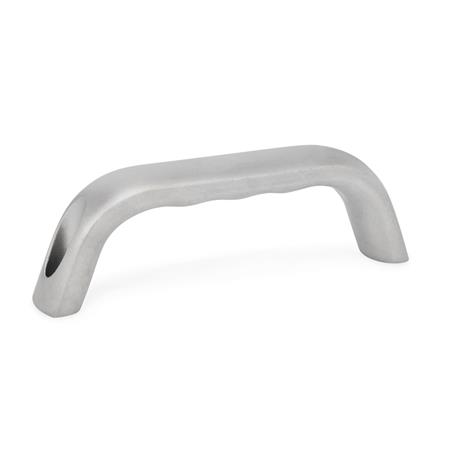

Bügelgriffe GN 328.5, Edelstahl, Gestrahlt

Name: Bügelgriffe GN 328.5, Edelstahl, Gestrahlt
Brand: Ganter
SKU: 328.5-120-B-GS

You do not have permission to view the prices

Prices and quantity discounts are shown after you log in. No customer account yet? Register now

Description

Technical data (manufacturer information, German terms)

l1	120
Form	B - Montage von der Bedienseite
Oberfläche	GS - matt gestrahlt
Werkstoff	NI - Edelstahl
a	14
Griffdurchmesser b	22
d2 Form B	6,5
h1	44
h2	5
l2	141,2
RoHS	Ja
Gewicht	0,292 kg

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

Article data

Manufacturer	Ganter (Otto Ganter GmbH & Co. KG)
Standard part	GN 328.5
Order designation	GN 328.5-120-B-GS
EAN	4045525524521
Manufacturer designation (German)	Bügelgriffe, Edelstahl-Feinguss
Order unit	Piece
Customs tariff number	83024900
eCl@ss 5.1.4	23010103
