Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 30 |
|---|
| Gewinde d3 | M 8 |
|---|
| Länge l1 | 200 |
|---|
| Form | E - mit Edelstahl-Deckel |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| l2 Gewindebohrung für Montagebolzen | 200 |
|---|
| d4 | 20 |
|---|
| h | 60 |
|---|
| l3 | 265 |
|---|
| l4 | 15 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,581 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 666.7 |
|---|
| Order designation | GN 666.7-30-M8-200-E |
|---|
| EAN | 4045525774087 |
|---|

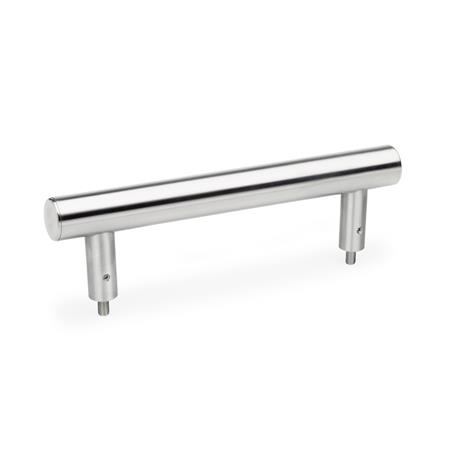

| Manufacturer designation (German) | Rohrgriffe, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
