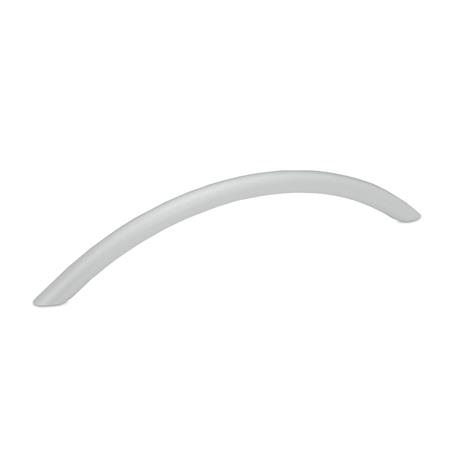

Bogengriffe GN 424.1, Stahl – Ganter GN 424.1-10-64-SR
Dimensional drawing Ganter GN 424.1-10-64-SR
Preview: Bogengriffe GN 424.1, Stahl – Ganter GN 424.1-10-64-SR
Preview: Dimensional drawing Ganter GN 424.1-10-64-SR
Bogengriffe GN 424.1, Stahl
Bogengriffe GN 424.1, Stahl – Ganter GN 424.1-10-64-SR
Dimensional drawing Ganter GN 424.1-10-64-SR
Mobile Preview: Bogengriffe GN 424.1, Stahl – Ganter GN 424.1-10-64-SR
Mobile Preview: Dimensional drawing Ganter GN 424.1-10-64-SR

Bogengriffe GN 424.1, Stahl

Product No.:
424.1-10-64-SR
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d10
    Länge l164
    OberflächeSR - silber, RAL 9006, strukturmatt
    WerkstoffST - Stahl
    l2 ≈75
    h ≈35
    RoHSJa
    Gewicht0,060 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 424.1
    Order designationGN 424.1-10-64-SR
    EAN4045525824348
    Manufacturer designation (German)Bogengriffe, Stahl
    Order unitPiece
    Customs tariff number83024900
    eCl@ss 5.1.423010190
