Technical data (manufacturer information, German terms)
| Griffdurchmesser b | 20 |
|---|
| Länge l1 | 160 |
|---|
| Type | B - Montage von der Bedienseite |
|---|
| Finish | MT - matt gestrahlt |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| a | 13 |
|---|
| d2 Form B | 5,3 |
|---|
| h1 ≈ | 50 |
|---|
| h2 | 5 |
|---|
| l2 ≈ | 185 |
|---|
| t2 | 5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,305 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 565.9 |
|---|
| Order designation | GN 565.9-20-160-B-MT |
|---|
| EAN | 4045525883260 |
|---|

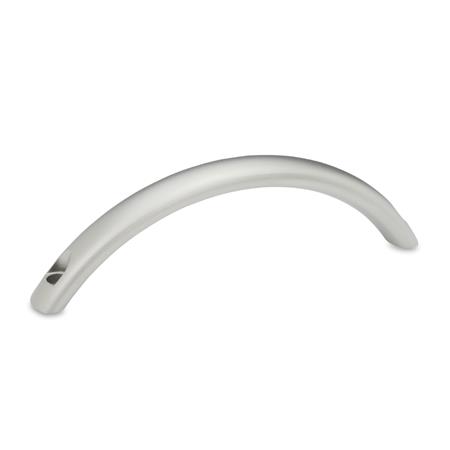

| Manufacturer designation (German) | Bogengriffe, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
