Technical data (manufacturer information, German terms)
| Werkstoff | ZD - Zink-Druckguss |
|---|
| d1 | 28 |
|---|
| d2 | M 10 |
|---|
| Farbe | SW - schwarz, RAL 9005, strukturmatt |
|---|
| Höhe b | 30 |
|---|
| d3 | 10 |
|---|
| Länge l | 56 |
|---|
| m | 26 |
|---|
| Breite s | 6,5 |
|---|
| t | 13,5 |
|---|
| Senkschraube DIN 7991 | M 10 x 20 |
|---|
| für Bügelgriffe | GN 426-28-... / GN 426.1-28-... |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,088 kg |
|---|

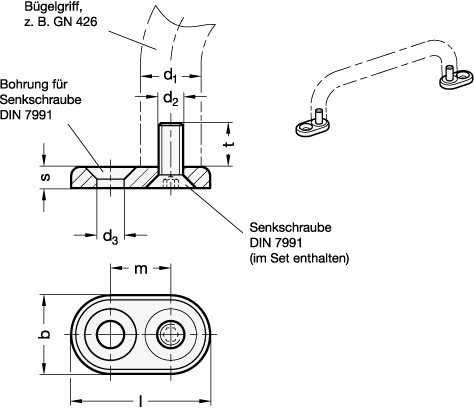

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 181 |
|---|
| Order designation | GN 181-ZD-28-M10-SW |
|---|
| EAN | 4045525066113 |
|---|
| Manufacturer designation (German) | Befestigungssätze für Bügelgriffe |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 79070000 |
|---|
| eCl@ss 5.1.4 | 23019101 |
|---|
