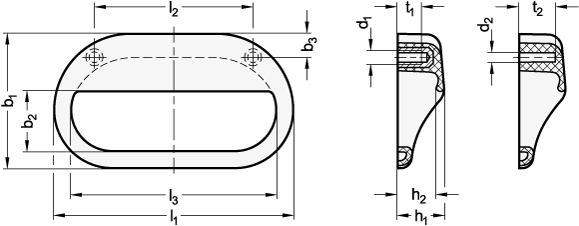

Dimensional drawing Ganter GN 130.3-108-M5-SG
Preview: Griffleisten GN 130.3, Kunststoff – Ganter GN 130.3-108-M5-SG
Preview: Dimensional drawing Ganter GN 130.3-108-M5-SG
Griffleisten GN 130.3, Kunststoff
Griffleisten GN 130.3, Kunststoff – Ganter GN 130.3-108-M5-SG
Dimensional drawing Ganter GN 130.3-108-M5-SG
Mobile Preview: Griffleisten GN 130.3, Kunststoff – Ganter GN 130.3-108-M5-SG
Mobile Preview: Dimensional drawing Ganter GN 130.3-108-M5-SG

Griffleisten GN 130.3, Kunststoff

Product No.:
130.3-108-M5-SG
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Länge l1108
    Gewinde d1M 5
    FarbeSG - schwarzgrau, RAL 7021, matt
    WerkstoffPA - Kunststoff, Polyamid
    b160
    b226,5
    b311
    h120,5
    h217,5
    l271
    l391
    t112
    RoHSJa
    Gewicht0,037 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 130.3
    Order designationGN 130.3-108-M5-SG
    EAN4045525757936
    Manufacturer designation (German)Griffleisten, Kunststoff
    Order unitPiece
    Customs tariff number39263000
    eCl@ss 5.1.423010190
