Technical data (manufacturer information, German terms)
| Griffbreite b1 | 26 |
|---|
| Länge l1 | 350 |
|---|
| Oberfläche | SR - silber, RAL 9006, strukturmatt |
|---|
| Werkstoff | AL - Aluminium |
|---|
| a | 17 |
|---|
| b2 | 14 |
|---|
| Gewinde | M 8 |
|---|
| h | 69 |
|---|
| l2 ≈ | 526 |
|---|
| l3 | 328 |
|---|
| l4 ≈ | 18 |
|---|
| l5 max. | 9,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,600 kg |
|---|

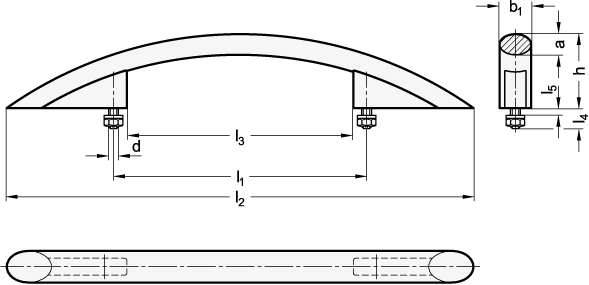

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 665 |
|---|
| Order designation | GN 665-26-350-SR |
|---|
| EAN | 4045525750517 |
|---|
| Manufacturer designation (German) | Bogengriffe, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
