Bügelgriffe GN 528.4, Kunststoff – Ganter GN 528.4-PA-117-M6-SW

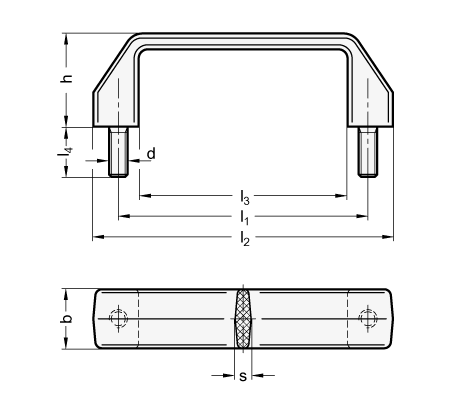

Dimensional drawing Ganter GN 528.4-PA-117-M6-SW
Preview: Bügelgriffe GN 528.4, Kunststoff – Ganter GN 528.4-PA-117-M6-SW
Preview: Dimensional drawing Ganter GN 528.4-PA-117-M6-SW
Bügelgriffe GN 528.4, Kunststoff
Bügelgriffe GN 528.4, Kunststoff – Ganter GN 528.4-PA-117-M6-SW
Dimensional drawing Ganter GN 528.4-PA-117-M6-SW
Mobile Preview: Bügelgriffe GN 528.4, Kunststoff – Ganter GN 528.4-PA-117-M6-SW
Mobile Preview: Dimensional drawing Ganter GN 528.4-PA-117-M6-SW

Bügelgriffe GN 528.4, Kunststoff

Product No.:
528.4-PA-117-M6-SW
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    WerkstoffPA - Kunststoff, Polyamid
    Länge l1117
    Gewinde dM 6
    FarbeSW - schwarz, RAL 9005, matt
    b25
    h38
    l2134
    l3102
    l416
    s7,5
    RoHSJa
    Gewicht0,056 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 528.4
    Order designationGN 528.4-PA-117-M6-SW
    EAN4045525383487
    Manufacturer designation (German)Bügelgriffe, Kunststoff
    Order unitPiece
    Customs tariff number39263000
    eCl@ss 5.1.423010103
