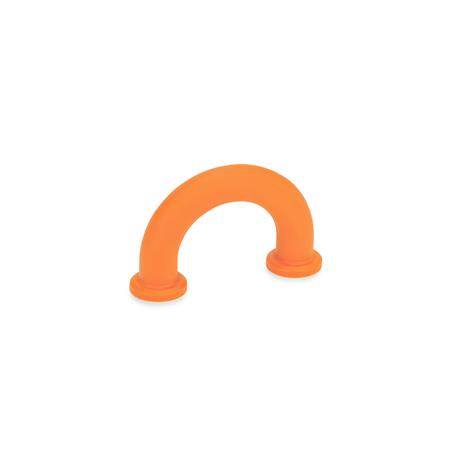

Fingergriffe GN 224.3, Kunststoff – Ganter GN 224.3-10-40-B3,5-OR
Dimensional drawing Ganter GN 224.3-10-40-B3,5-OR
Preview: Fingergriffe GN 224.3, Kunststoff – Ganter GN 224.3-10-40-B3,5-OR
Preview: Dimensional drawing Ganter GN 224.3-10-40-B3,5-OR
Fingergriffe GN 224.3, Kunststoff
Fingergriffe GN 224.3, Kunststoff – Ganter GN 224.3-10-40-B3,5-OR
Dimensional drawing Ganter GN 224.3-10-40-B3,5-OR
Mobile Preview: Fingergriffe GN 224.3, Kunststoff – Ganter GN 224.3-10-40-B3,5-OR
Mobile Preview: Dimensional drawing Ganter GN 224.3-10-40-B3,5-OR

Fingergriffe GN 224.3, Kunststoff

Product No.:
224.3-10-40-B3,5-OR
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d110
    Länge l40
    d2B 3,5
    FarbeOR - orange, RAL 2004, matt
    WerkstoffPA - Kunststoff, Polyamid
    Länge x139,5
    d315
    h33,5
    RoHSJa
    Gewicht0,009 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 224.3
    Order designationGN 224.3-10-40-B3,5-OR
    EAN4045525383715
    Manufacturer designation (German)Fingergriffe, Kunststoff
    Order unitPiece
    Customs tariff number83024900
    eCl@ss 5.1.423010190
