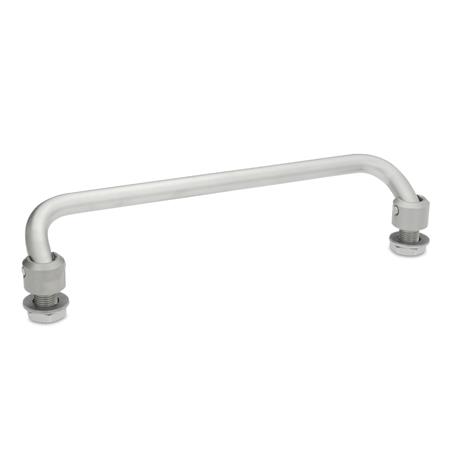

Klappgriffe GN 425.2, Edelstahl – Ganter GN 425.2-NI-10-100-GS
Dimensional drawing Ganter GN 425.2-NI-10-100-GS
Preview: Klappgriffe GN 425.2, Edelstahl – Ganter GN 425.2-NI-10-100-GS
Preview: Dimensional drawing Ganter GN 425.2-NI-10-100-GS
Klappgriffe GN 425.2, Edelstahl
Klappgriffe GN 425.2, Edelstahl – Ganter GN 425.2-NI-10-100-GS
Dimensional drawing Ganter GN 425.2-NI-10-100-GS
Mobile Preview: Klappgriffe GN 425.2, Edelstahl – Ganter GN 425.2-NI-10-100-GS
Mobile Preview: Dimensional drawing Ganter GN 425.2-NI-10-100-GS

Klappgriffe GN 425.2, Edelstahl

Product No.:
425.2-NI-10-100-GS
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    WerkstoffNI - Edelstahl
    d110
    Länge l100
    OberflächeGS - matt gestrahlt
    d2M 10 x 1
    d318
    h134
    h243
    h314
    h414
    r12
    s max.6
    RoHSJa
    Gewicht0,150 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 425.2
    Order designationGN 425.2-NI-10-100-GS
    EAN4045525248472
    Manufacturer designation (German)Klappgriffe, Edelstahl
    Order unitPiece
    Customs tariff number83024900
    eCl@ss 5.1.423010103
