Technical data (manufacturer information, German terms)
| Länge l1 | 114 |
|---|
| Form | B - Befestigung mit Senkschraube |
|---|
| Farbe | DOR - orange, RAL 2004, glänzend |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| l2 | 93,5 |
|---|
| l3 | 74 |
|---|
| b1 | 35 |
|---|
| b2 | 19 |
|---|
| d | 6,5 |
|---|
| h1 | 33 |
|---|
| h2 | 7 |
|---|
| h3 | 11 |
|---|
| h4 | 9 |
|---|
| t | 5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,033 kg |
|---|

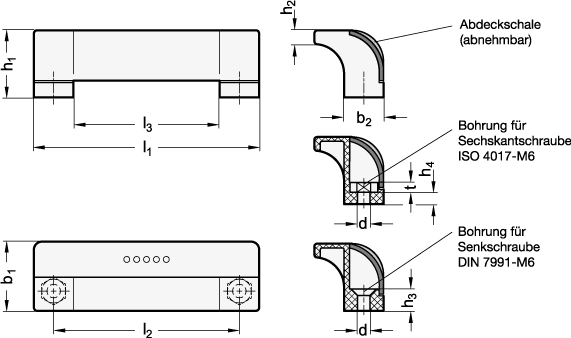

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 630 |
|---|
| Order designation | GN 630-114-B-DOR |
|---|
| EAN | 4045525321120 |
|---|
| Manufacturer designation (German) | Griffleisten, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
