Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 30 |
|---|
| Länge l1 | 300 |
|---|
| Werkstoff / Oberfläche | NG - geschliffen, matt glänzend |
|---|
| b | 18 |
|---|
| Gewinde | M 8 |
|---|
| h | 60 |
|---|
| l2 | 330 |
|---|
| l3 | 270 |
|---|
| l4 | 365 |
|---|
| l5 | 85 |
|---|
| l6 | 17 |
|---|
| l7 max. | 8,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,508 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 666.1 |
|---|
| Order designation | GN 666.1-30-300-NG |
|---|
| EAN | 4045525557116 |
|---|

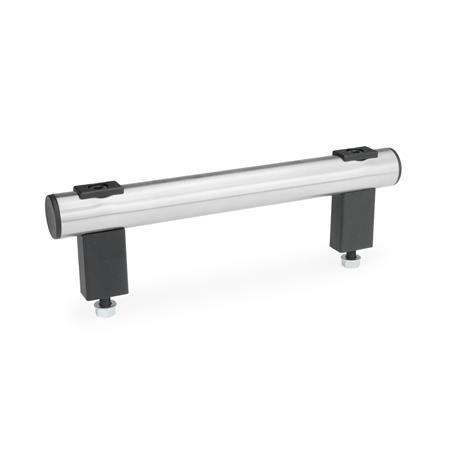

| Manufacturer designation (German) | Rohrgriffe, Aluminium- / Edelstahlrohr |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
