Technical data (manufacturer information, German terms)
| Griffdurchmesser b1 | 36 |
|---|
| Länge l1 | 500 |
|---|
| Oberfläche | EL - eloxiert, naturfarben |
|---|
| Werkstoff | AL - Aluminium |
|---|
| a | 24 |
|---|
| b2 | 38 |
|---|
| d | 8,5 |
|---|
| h1 | 57 |
|---|
| h2 | 72 |
|---|
| h3 | 5 |
|---|
| l2 | 14,5 |
|---|
| l3 | 7,5 |
|---|
| l4 | 41 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,700 kg |
|---|

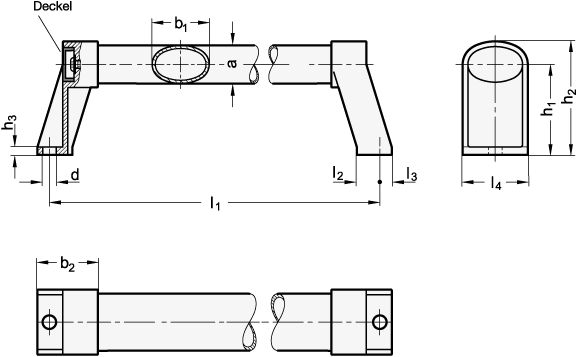

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 334.1 |
|---|
| Order designation | GN 334.1-36-500-EL |
|---|
| EAN | 4045525024113 |
|---|
| Manufacturer designation (German) | Ovalrohrgriffe Montage von der Bedienungsseite |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
