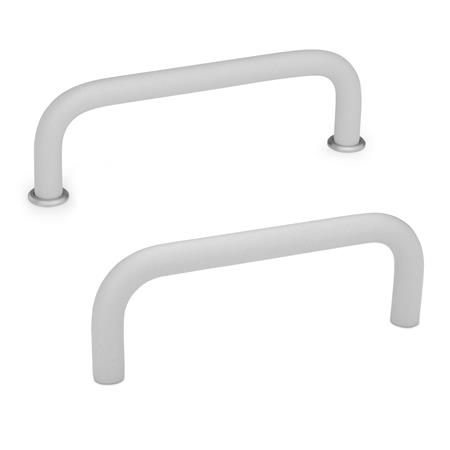

Bügelgriffe GN 425, Aluminium – Ganter GN 425-AL-8-55-SR

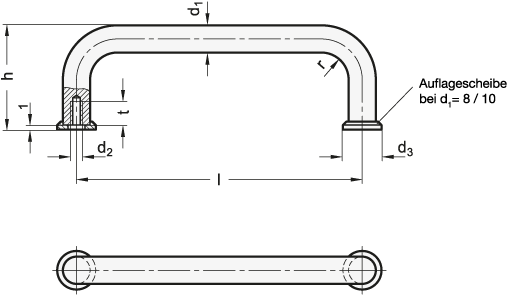

Dimensional drawing Ganter GN 425-AL-8-55-SR
Preview: Bügelgriffe GN 425, Aluminium – Ganter GN 425-AL-8-55-SR
Preview: Dimensional drawing Ganter GN 425-AL-8-55-SR
Bügelgriffe GN 425, Aluminium
Bügelgriffe GN 425, Aluminium – Ganter GN 425-AL-8-55-SR
Dimensional drawing Ganter GN 425-AL-8-55-SR
Mobile Preview: Bügelgriffe GN 425, Aluminium – Ganter GN 425-AL-8-55-SR
Mobile Preview: Dimensional drawing Ganter GN 425-AL-8-55-SR

Bügelgriffe GN 425, Aluminium

Product No.:
425-AL-8-55-SR
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    WerkstoffAL - Aluminium
    Griffdurchmesser d18
    Länge l55
    OberflächeSR - silber, RAL 9006, strukturmatt
    GewindeM 4
    d312
    h35
    r10
    t min.8
    RoHSJa
    Gewicht0,017 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 425
    Order designationGN 425-AL-8-55-SR
    EAN4045525826724
    Manufacturer designation (German)Bügelgriffe, Aluminium
    Order unitPiece
    Customs tariff number83024900
    eCl@ss 5.1.423010103
