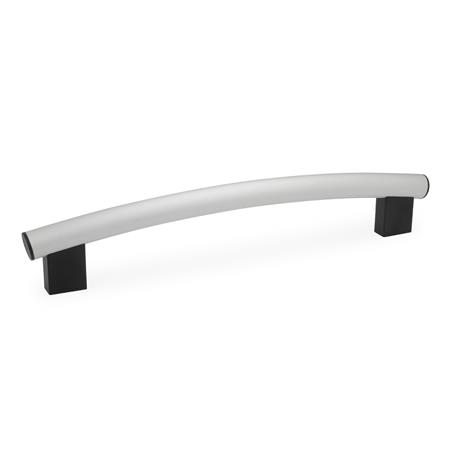

Rohrbogengriffe GN 666.4, Aluminium – Ganter GN 666.4-30-M8-500-EL
Dimensional drawing Ganter GN 666.4-30-M8-500-EL
Preview: Rohrbogengriffe GN 666.4, Aluminium – Ganter GN 666.4-30-M8-500-EL
Preview: Dimensional drawing Ganter GN 666.4-30-M8-500-EL
Rohrbogengriffe GN 666.4, Aluminium
Rohrbogengriffe GN 666.4, Aluminium – Ganter GN 666.4-30-M8-500-EL
Dimensional drawing Ganter GN 666.4-30-M8-500-EL
Mobile Preview: Rohrbogengriffe GN 666.4, Aluminium – Ganter GN 666.4-30-M8-500-EL
Mobile Preview: Dimensional drawing Ganter GN 666.4-30-M8-500-EL

Rohrbogengriffe GN 666.4, Aluminium

Product No.:
666.4-30-M8-500-EL
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d130
    Gewinde d2M 8
    Länge l1500
    OberflächeEL - eloxiert, naturfarben
    b22
    h94
    l2540
    l3460
    l4580
    t min.15
    RoHSJa
    Gewicht0,362 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 666.4
    Order designationGN 666.4-30-M8-500-EL
    EAN4045525550193
    Manufacturer designation (German)Rohrbogengriffe, Aluminium- / Edelstahlrohr
    Order unitPiece
    Customs tariff number83024900
    eCl@ss 5.1.423010190
