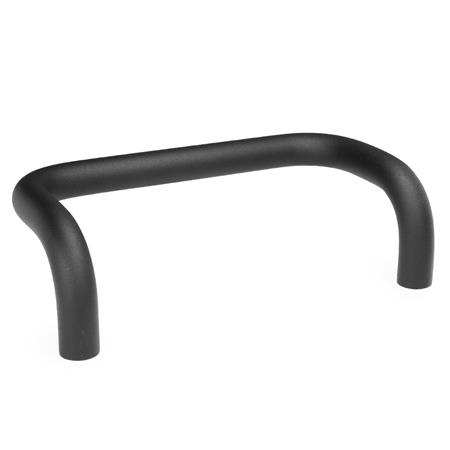

Bügelgriffe GN 426.1, Aluminium – Ganter GN 426.1-AL-20-300-SW
Dimensional drawing Ganter GN 426.1-AL-20-300-SW
Preview: Bügelgriffe GN 426.1, Aluminium – Ganter GN 426.1-AL-20-300-SW
Preview: Dimensional drawing Ganter GN 426.1-AL-20-300-SW
Bügelgriffe GN 426.1, Aluminium
Bügelgriffe GN 426.1, Aluminium – Ganter GN 426.1-AL-20-300-SW
Dimensional drawing Ganter GN 426.1-AL-20-300-SW
Mobile Preview: Bügelgriffe GN 426.1, Aluminium – Ganter GN 426.1-AL-20-300-SW
Mobile Preview: Dimensional drawing Ganter GN 426.1-AL-20-300-SW

Bügelgriffe GN 426.1, Aluminium

Product No.:
426.1-AL-20-300-SW
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    WerkstoffAL - Aluminium
    Griffdurchmesser d120
    Länge l300
    OberflächeSW - schwarz, RAL 9005, strukturmatt
    d2M 8
    h1105
    h268
    r22
    t min.15
    RoHSJa
    Gewicht0,462 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 426.1
    Order designationGN 426.1-AL-20-300-SW
    EAN4045525250222
    Manufacturer designation (German)Bügelgriffe, Aluminium
    Order unitPiece
    Customs tariff number83024900
    eCl@ss 5.1.423010103
