Technical data (manufacturer information, German terms)
| Länge l | 117 |
|---|
| Farbe | WS - weiß, RAL 9002, glänzend |
|---|
| Werkstoff | KT - Kunststoff |
|---|
| Gewinde | M 8 |
|---|
| a | 20 |
|---|
| b | 30 |
|---|
| h | 53 |
|---|
| t min. | 13 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,090 kg |
|---|

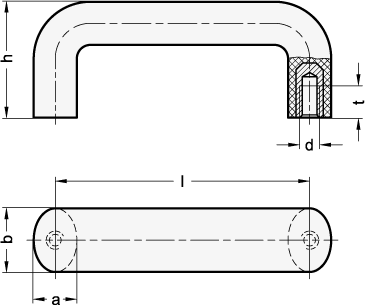

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 625 |
|---|
| Order designation | GN 625-117-WS |
|---|
| EAN | 4045525466661 |
|---|
| Manufacturer designation (German) | Bügelgriffe, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010103 |
|---|
