Technical data (manufacturer information, German terms)
| Länge l | 120 |
|---|
| Oberfläche | CR - verchromt |
|---|
| Werkstoff | ST - Stahl |
|---|
| h1 | 34 |
|---|
| h2 | 44,5 |
|---|
| h3 | 55 |
|---|
| F1 Belastbarkeit in N ausgeklappt | 500 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,118 kg |
|---|

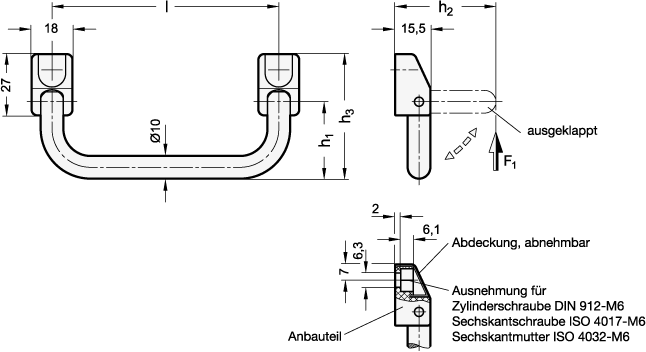

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 425.5 |
|---|
| Order designation | GN 425.5-120-CR |
|---|
| EAN | 4045525616035 |
|---|
| Manufacturer designation (German) | Klappgriffe, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23010103 |
|---|
