Technical data (manufacturer information, German terms)
| Handraddurchmesser d1 | 125 |
|---|
| Bohrungsdurchmesser d2 (Form R) | 14 |
|---|
| Bohrungskennzeichnung | K - mit Nabennut DIN 6885-1 P9 |
|---|
| Form | R - mit drehbarem Griff |
|---|
| Werkstoff | PP - Kunststoff |
|---|
| d3 | 26 |
|---|
| d4 | 24 |
|---|
| d5 | 35 |
|---|
| d6 | 28 |
|---|
| d7 | 31 |
|---|
| b | 28 |
|---|
| h | 11 |
|---|
| l1 | 27 |
|---|
| l2 | 39,5 |
|---|
| l3 | 60 |
|---|
| r | 49 |
|---|
| Ø Zylindergriff | 18 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,200 kg |
|---|

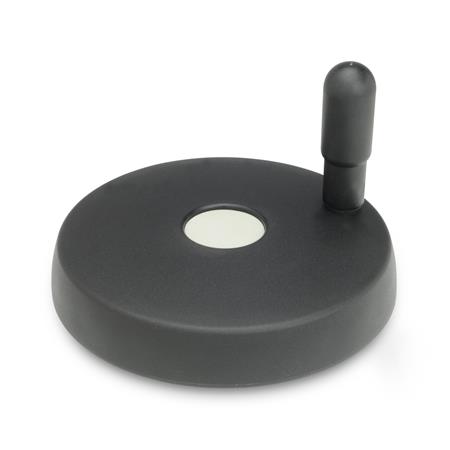

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 521 |
|---|
| Order designation | GN 521-125-K14-R |
|---|
| EAN | 4045525783324 |
|---|
| Manufacturer designation (German) | Scheibenhandräder, Kunststoff, Buchse / Griffachse Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010302 |
|---|
