Technical data (manufacturer information, German terms)
| Handraddurchmesser d1 | 250 |
|---|
| Bohrungsdurchmesser d2 | 26 |
|---|
| Bohrungskennzeichen | B - ohne Nabennut |
|---|
| Form | A - ohne Griff |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d3 | 48 |
|---|
| b | 23 |
|---|
| l1 | 28 |
|---|
| l2 | 51 |
|---|
| l3 | 86,5 |
|---|
| r | 113 |
|---|
| {Sp:s} Zylindergriff GN 798 | 25 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 1,490 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 322 |
|---|
| Order designation | GN 322-250-B26-A |
|---|
| EAN | 4045525181779 |
|---|

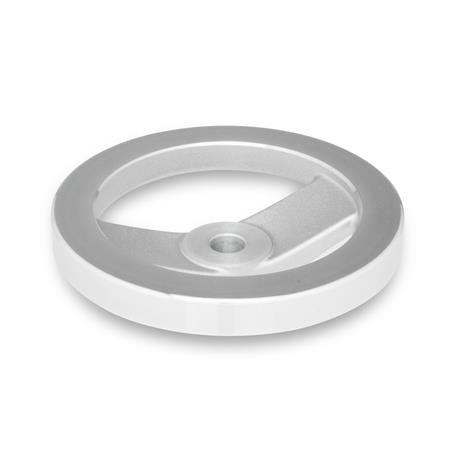

| Manufacturer designation (German) | Speichenhandräder, blank, Radkranz poliert |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010390 |
|---|
