Technical data (manufacturer information, German terms)
| Größe Nr. | 3 |
|---|
| Bohrung d2 | K 20 |
|---|
| Werkstoff | ST - Stahl |
|---|
| d3 | 38 |
|---|
| d4 max. | 26 |
|---|
| d5 Mindest-Ø der Radnabe | 39 |
|---|
| d6 Aufnahmebohrung der Radnabe H7 | 35 |
|---|
| l1 | 36,5 |
|---|
| l3 | 6 |
|---|
| t | 36 |
|---|
| w min. | 4 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,173 kg |
|---|

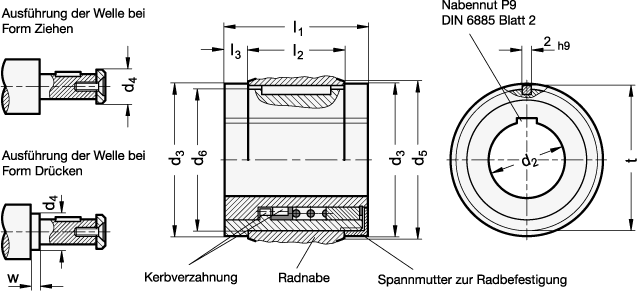

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 000.4 |
|---|
| Order designation | GN 000.4-3-K20 |
|---|
| EAN | 4045525000391 |
|---|
| Manufacturer designation (German) | Kupplungssätze für Sicherheits-Handräder |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84836080 |
|---|
| eCl@ss 5.1.4 | 23019103 |
|---|
