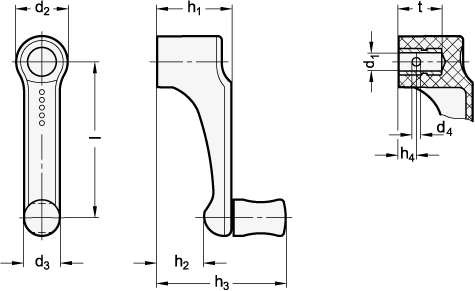

Dimensional drawing Ganter GN 670.2-71-B10-SW
Preview: Gerätekurbeln GN 670.2, Kunststoff – Ganter GN 670.2-71-B10-SW
Preview: Dimensional drawing Ganter GN 670.2-71-B10-SW
Gerätekurbeln GN 670.2, Kunststoff
Gerätekurbeln GN 670.2, Kunststoff – Ganter GN 670.2-71-B10-SW
Dimensional drawing Ganter GN 670.2-71-B10-SW
Mobile Preview: Gerätekurbeln GN 670.2, Kunststoff – Ganter GN 670.2-71-B10-SW
Mobile Preview: Dimensional drawing Ganter GN 670.2-71-B10-SW

Gerätekurbeln GN 670.2, Kunststoff

Product No.:
670.2-71-B10-SW
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Länge l71
    Bohrung d1B 10
    FarbeSW - schwarz, RAL 9005, matt
    WerkstoffPA - Kunststoff, Polyamid
    Bohrung10
    d223
    d316
    d44
    h130
    h218
    h353
    h49
    t25
    Ø Zylinderknopf14,5
    RoHSJa
    Gewicht0,020 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 670.2
    Order designationGN 670.2-71-B10-SW
    EAN4045525107403
    Manufacturer designation (German)Gerätekurbeln, Kunststoff
    Order unitPiece
    Customs tariff number84879090
    eCl@ss 5.1.423010202
