Handkurbeln GN 269, Edelstahl

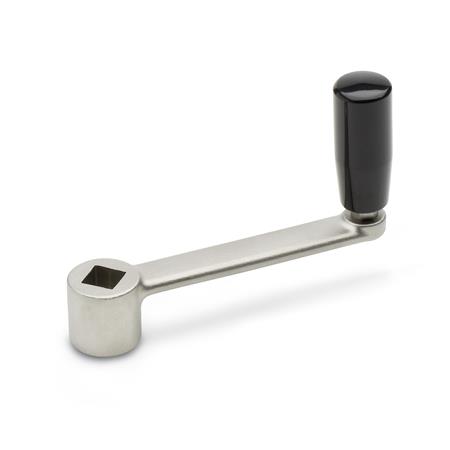

Handkurbeln GN 269, Edelstahl – Ganter GN 269-80-V10
Dimensional drawing Ganter GN 269-80-V10
Mobile Preview: Handkurbeln GN 269, Edelstahl – Ganter GN 269-80-V10
Mobile Preview: Dimensional drawing Ganter GN 269-80-V10

Handkurbeln GN 269, Edelstahl

Product No.:
269-80-V10
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Länge l80
    Vierkant sV 10
    WerkstoffNF - Edelstahl-Feinguss
    Bohrung10
    d222
    h122
    h2 ≈15,4
    h36,6
    h4 ≈45
    Ø Zylindergriff18
    BohrungV - mit Vierkant
    RoHSJa
    Gewicht0,123 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 269
    Order designationGN 269-80-V10
    EAN4045525699410
    Manufacturer designation (German)Edelstahl-Handkurbeln
    Order unitPiece
    Customs tariff number84879059
    eCl@ss 5.1.423010202
