Technical data (manufacturer information, German terms)
| d1 (Ø Lineareinheit) | 60 |
|---|
| d21 (Speichenhandrad) | 160 |
|---|
| Form | RU - mit drehbarem Umleggriff |
|---|
| Oberfläche | SW - schwarz, RAL 9005, strukturmatt |
|---|
| Werkstoff | AD - Aluminium-Druckguss |
|---|
| d3 Bohrung | 14 |
|---|
| l3 ≈ | 48 |
|---|
| l4 ≈ | 75,5 |
|---|
| Ø Zylindergriff GN 798.3 | 24 |
|---|
| d2 | 125...160 - Speichenhandrad |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,729 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 9234 |
|---|
| Order designation | GN 9234-60-160-RU-SW |
|---|
| EAN | 4045525799110 |
|---|

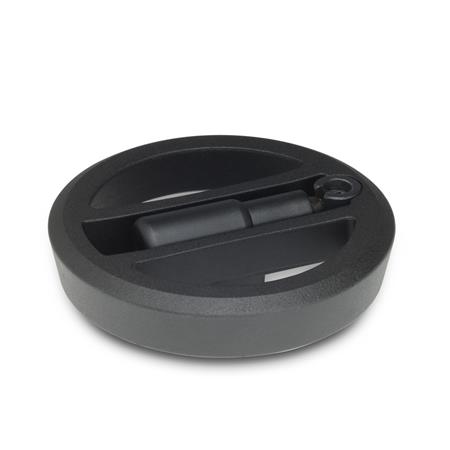

| Manufacturer designation (German) | Handräder, Aluminium, kunststoffbeschichtet, für Lineareinheiten |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010302 |
|---|
