Technical data (manufacturer information, German terms)
| Kurbellänge l | 100 |
|---|
| Bohrung d1 | B 12 |
|---|
| Farbe | SW - schwarz, RAL 9005, strukturmatt |
|---|
| Werkstoff | AL - Aluminium |
|---|
| Bohrung | 12 |
|---|
| d2 | 26,7 |
|---|
| d3 | 35 |
|---|
| h1 | 23,5 |
|---|
| h2 ≈ | 5,5 |
|---|
| h3 | 29,5 |
|---|
| h4 | 4,2 |
|---|
| h5 ≈ | 57,5 |
|---|
| Ø Umleggriff | 18 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,180 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 472.3 |
|---|
| Order designation | GN 472.3-100-B12-SW |
|---|
| EAN | 4045525261532 |
|---|

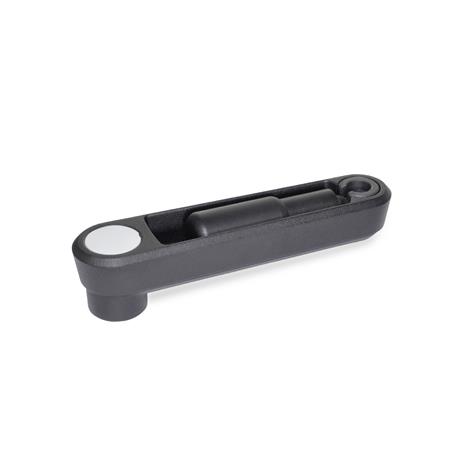

| Manufacturer designation (German) | Umleggriff-Handkurbeln, Aluminium, Umlegmechanik Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010202 |
|---|
