Technical data (manufacturer information, German terms)
| Werkstoff | GG - Gusseisen |
|---|
| Handraddurchmesser d1 | 125 |
|---|
| Bohrungsdurchmesser d2 | 14 |
|---|
| Bohrungskennzeichnung | K - mit Nabennut DIN 6885-1 P9 |
|---|
| Form | D - mit drehbarem Griff |
|---|
| d3 | 34 |
|---|
| b | 16 |
|---|
| l1 | 26 |
|---|
| l2 ≈ | 45 |
|---|
| l3 ≈ | 65 |
|---|
| r | 47 |
|---|
| Ø Griff | 20 |
|---|
| Anzahl der Speichen | 3 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,882 kg |
|---|

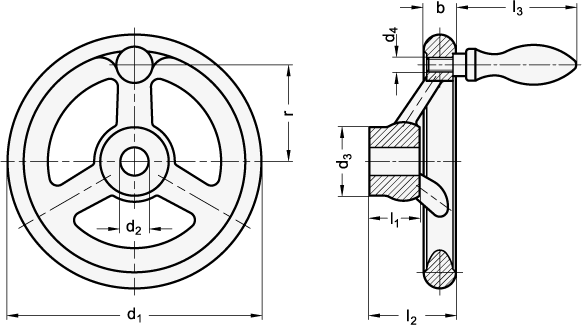

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 950.1 |
|---|
| Order designation | GN 950.1-GG-125-K14-D |
|---|
| EAN | 4045525411524 |
|---|
| Manufacturer designation (German) | Handräder, Gusseisen, mit großer Nabe |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 23010301 |
|---|
