Technical data (manufacturer information, German terms)
| Kurbellänge Länge l | 100 |
|---|
| Vierkant s | V 12 |
|---|
| Farbe der Abdeckkappe | DGR - grau, RAL 7035, matt |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| Bohrung | 12 |
|---|
| d2 | 24 |
|---|
| d3 | 23,5 |
|---|
| d4 | 30 |
|---|
| h1 | 33 |
|---|
| h2 | 52,5 |
|---|
| h3 | 10 |
|---|
| h4 | 17 |
|---|
| h5 | 16 |
|---|
| h6 ≈ | 65 |
|---|
| Ø Zylindergriff | 22 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,190 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 670 |
|---|
| Order designation | GN 670-100-V12-DGR |
|---|
| EAN | 4045525350960 |
|---|

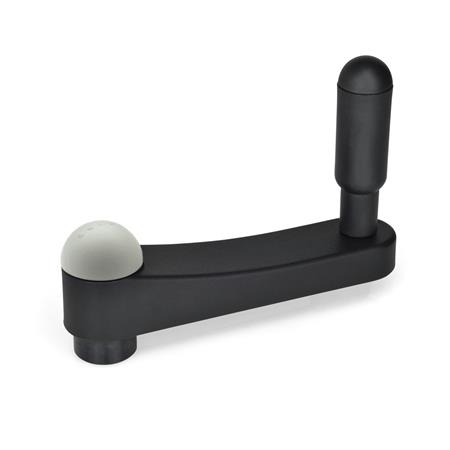

| Manufacturer designation (German) | Handkurbeln, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010202 |
|---|
