Technical data (manufacturer information, German terms)
| Handraddurchmesser d1 | 200 |
|---|
| Bohrung d2 | K 18 |
|---|
| Form | D - mit drehbarem Stahlgriff |
|---|
| Kennzeichnung | ZI - Einkuppeln durch Ziehen |
|---|
| Werkstoff | AL - Aluminium |
|---|
| Bohrung | 20 |
|---|
| d3 | 38 |
|---|
| d4 max. | 26 |
|---|
| l1 | 36,5 |
|---|
| l2 | 24 |
|---|
| l3 | 6 |
|---|
| l4 | 82,5 |
|---|
| r | 89 |
|---|
| w min. | 4 |
|---|
| Ø | 26 |
|---|
| Kupplung GN 000.4 Größe | 3 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 1,328 kg |
|---|

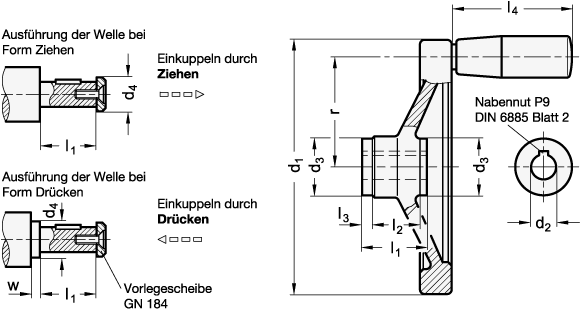

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 323.4 |
|---|
| Order designation | GN 323.4-200-K18-D-ZI |
|---|
| EAN | 4045525186293 |
|---|
| Manufacturer designation (German) | Sicherheits-Handräder mit Gleitlager |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010390 |
|---|
