Technical data (manufacturer information, German terms)
| Außendurchmesseer d1 | 125 |
|---|
| Durchmesser d2 | 12 |
|---|
| Bohrungskennzeichnung | B - ohne Nabennut |
|---|
| Form | R - mit drehbarem Umleggriff |
|---|
| Werkstoff | PP - Kunststoff |
|---|
| d3 | 26 |
|---|
| d4 | 24 |
|---|
| d5 | 35 |
|---|
| d6 | 28 |
|---|
| d7 | 31 |
|---|
| b | 28 |
|---|
| h | 11 |
|---|
| l1 | 27 |
|---|
| l2 | 39,5 |
|---|
| l3 | 60 |
|---|
| r | 49 |
|---|
| Ø Zylindergriff | 18 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,200 kg |
|---|

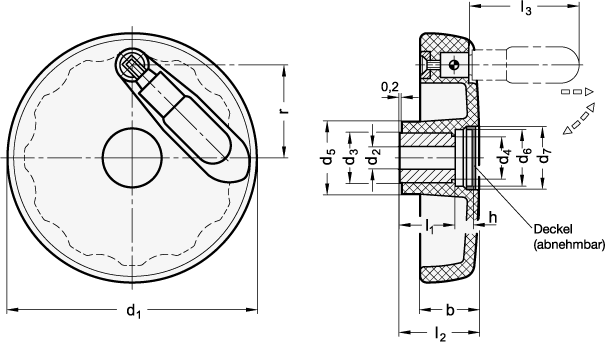

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 521.6 |
|---|
| Order designation | GN 521.6-125-B12-R |
|---|
| EAN | 4045525098046 |
|---|
| Manufacturer designation (German) | Umleggriff-Handräder, Kunststoff, Buchse / Umlegmechanik Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010302 |
|---|
