Technical data (manufacturer information, German terms)
| Handraddurchmesser d1 | 200 |
|---|
| Bohrungsdurchmesser d2 | 18 |
|---|
| Bohrungskennzeichnung | B - ohne Nabennut |
|---|
| Form | R - mit drehbarem Griff |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d3 | 45 |
|---|
| b | 20,5 |
|---|
| l1 | 24 |
|---|
| l2 ≈ | 45 |
|---|
| l3 ≈ | 86,5 |
|---|
| r | 89 |
|---|
| {Sp:s} Zylindergriff GN 798 | 25 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,940 kg |
|---|

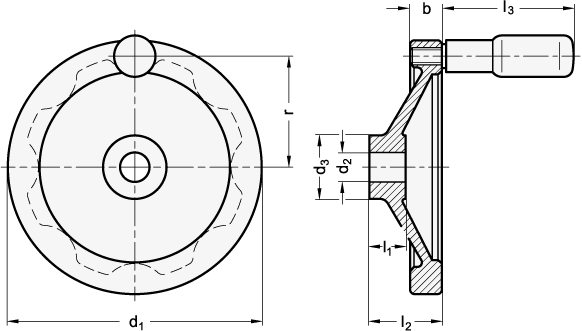

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 321 |
|---|
| Order designation | GN 321-200-B18-R |
|---|
| EAN | 4045525483705 |
|---|
| Manufacturer designation (German) | Scheibenhandräder, blank, Radkranz poliert |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010302 |
|---|
