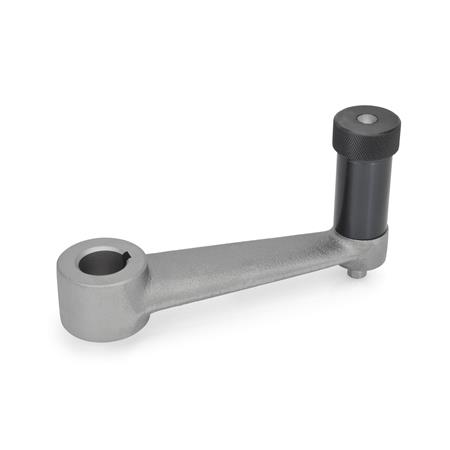

Schaltkurbeln GN 558, Gusseisen – Ganter GN 558-110-K20
Dimensional drawing Ganter GN 558-110-K20
Preview: Schaltkurbeln GN 558, Gusseisen – Ganter GN 558-110-K20
Preview: Dimensional drawing Ganter GN 558-110-K20
Schaltkurbeln GN 558, Gusseisen
Schaltkurbeln GN 558, Gusseisen – Ganter GN 558-110-K20
Dimensional drawing Ganter GN 558-110-K20
Mobile Preview: Schaltkurbeln GN 558, Gusseisen – Ganter GN 558-110-K20
Mobile Preview: Dimensional drawing Ganter GN 558-110-K20

Schaltkurbeln GN 558, Gusseisen

Product No.:
558-110-K20
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Kurbellänge l110
    Bohrung d120
    BohrungskennzeichnungK - mit Nabennut DIN 6885-1 P9
    WerkstoffGGG - Gusseisen (GGG)
    d236
    h30
    b6
    t21,7
    RoHSJa
    Gewicht0,690 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 558
    Order designationGN 558-110-K20
    EAN4045525293724
    Manufacturer designation (German)Schaltkurbeln, Gusseisen
    Order unitPiece
    Customs tariff number84879059
    eCl@ss 5.1.423010290
