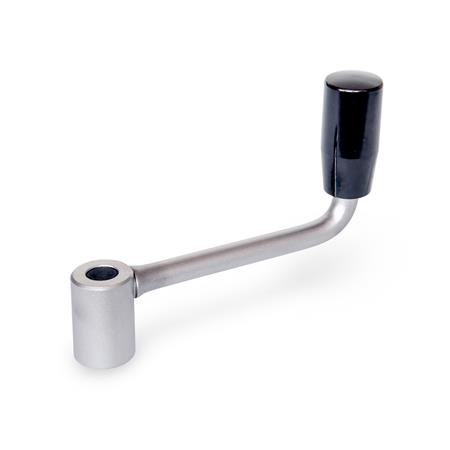

Gerätekurbeln GN 369.5, Edelstahl – Ganter GN 369.5-63-B10-A
Dimensional drawing Ganter GN 369.5-63-B10-A
Preview: Gerätekurbeln GN 369.5, Edelstahl – Ganter GN 369.5-63-B10-A
Preview: Dimensional drawing Ganter GN 369.5-63-B10-A
Gerätekurbeln GN 369.5, Edelstahl
Gerätekurbeln GN 369.5, Edelstahl – Ganter GN 369.5-63-B10-A
Dimensional drawing Ganter GN 369.5-63-B10-A
Mobile Preview: Gerätekurbeln GN 369.5, Edelstahl – Ganter GN 369.5-63-B10-A
Mobile Preview: Dimensional drawing Ganter GN 369.5-63-B10-A

Gerätekurbeln GN 369.5, Edelstahl

Product No.:
369.5-63-B10-A
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Länge l63
    d1 BohrungB 10
    FormA - ohne Quernut
    WerkstoffNI - Edelstahl
    Bohrung10
    d218
    h128
    h2 ≈18
    h3 ≈74
    h4 ≈40
    t18
    Ø Zylindergriff18
    Zylinderschraube DIN 912M 5
    RoHSJa
    Gewicht0,090 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 369.5
    Order designationGN 369.5-63-B10-A
    EAN4045525568457
    Manufacturer designation (German)Edelstahl-Gerätekurbeln
    Order unitPiece
    Customs tariff number84879059
    eCl@ss 5.1.423010202
