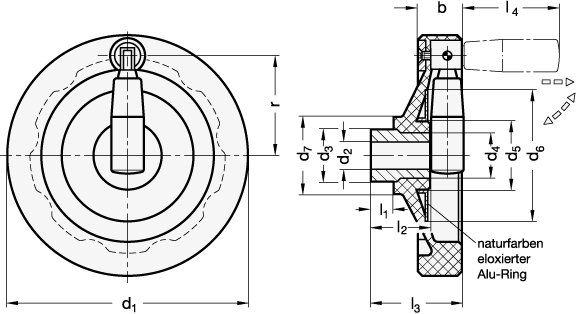

Dimensional drawing Ganter GN 520.4-250-B22-D
Preview: Umleggriff-Handräder GN 520.4, Kunststoff, Buchse / Umlegmechanik Stahl – Ganter GN 520.4-250-B22-D
Preview: Dimensional drawing Ganter GN 520.4-250-B22-D
Umleggriff-Handräder GN 520.4, Kunststoff, Buchse / Umlegmechanik Stahl
Umleggriff-Handräder GN 520.4, Kunststoff, Buchse / Umlegmechanik Stahl – Ganter GN 520.4-250-B22-D
Dimensional drawing Ganter GN 520.4-250-B22-D
Mobile Preview: Umleggriff-Handräder GN 520.4, Kunststoff, Buchse / Umlegmechanik Stahl – Ganter GN 520.4-250-B22-D
Mobile Preview: Dimensional drawing Ganter GN 520.4-250-B22-D

Umleggriff-Handräder GN 520.4, Kunststoff, Buchse / Umlegmechanik Stahl

Product No.:
520.4-250-B22-D
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Handraddurchmesser d1250
    Bohrungsdurchmesser d222
    BohrungskennzeichnungB - ohne Nabennut
    FormD - mit drehbarem Umleggriff
    WerkstoffKU - Kunststoff
    d349
    d440
    d566
    d6110
    d770
    b36
    l115
    l244,5
    l375
    l490
    r101
    Ø Umleggriff28
    RoHSJa
    Gewicht2,067 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 520.4
    Order designationGN 520.4-250-B22-D
    EAN4045525097872
    Manufacturer designation (German)Umleggriff-Handräder, Kunststoff, Buchse / Umlegmechanik Stahl
    Order unitPiece
    Customs tariff number84879090
    eCl@ss 5.1.423010390
