Technical data (manufacturer information, German terms)
| Handraddurchmesser d1 | 140 |
|---|
| Bohrungsdurchmesser d2 | 16 |
|---|
| Bohrungskennzeichnung | B - ohne Nabennut |
|---|
| Form | R - mit drehbarem Umleggriff |
|---|
| Farbe | SW - schwarz, RAL 9005, strukturmatt |
|---|
| Werkstoff | AD - Aluminium-Druckguss |
|---|
| d3 | 23 |
|---|
| d4 | 36 |
|---|
| b | 26 |
|---|
| h | 4 |
|---|
| l1 | 19 |
|---|
| l2 ≈ | 47 |
|---|
| l3 ≈ | 77,5 |
|---|
| r ≈ | 52 |
|---|
| {Sp:s} Umleggriff | 24 |
|---|
| empfohlenen Vorlegescheibe | 184-22 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,594 kg |
|---|

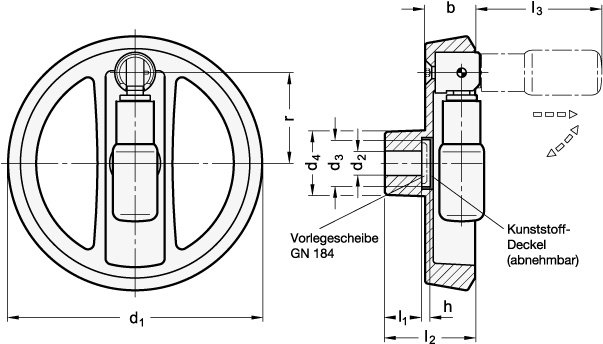

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 924.7 |
|---|
| Order designation | GN 924.7-140-B16-R-SW |
|---|
| EAN | 4045525641631 |
|---|
| Manufacturer designation (German) | Umleggriff-Handräder, Sicherheits-Umleggriff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010390 |
|---|
