Technical data (manufacturer information, German terms)
| Handraddurchmesser d1 | 160 |
|---|
| Bohrung d2 | K 12 |
|---|
| Form | A - ohne Griff |
|---|
| Werkstoff | AL - Aluminium |
|---|
| Bohrung | 14 |
|---|
| Bohrung filtercolumn2 | 16 |
|---|
| d3 | 24 |
|---|
| d4 | 42 |
|---|
| d5 | 40 |
|---|
| d6 max. | 23 |
|---|
| b | 18 |
|---|
| h | 7 |
|---|
| l1 | 45 |
|---|
| l2 | 58 |
|---|
| l3 | 82,5 |
|---|
| r | 71 |
|---|
| {Sp:s} Zylindergriff | 26 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,659 kg |
|---|

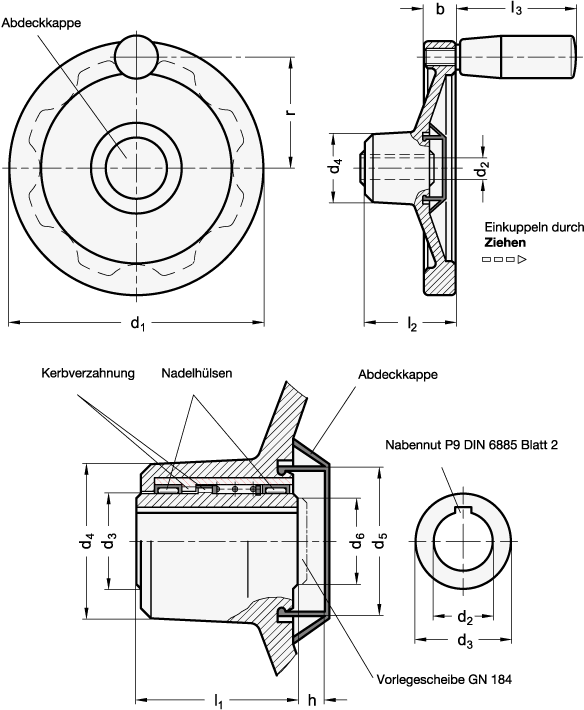

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 321.6 |
|---|
| Order designation | GN 321.6-160-K12-A |
|---|
| EAN | 4045525179851 |
|---|
| Manufacturer designation (German) | Sicherheits-Handräder, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010390 |
|---|
