Technical data (manufacturer information, German terms)
| Handraddurchmesser d1 | 80 |
|---|
| Bohrungsdurchmesser d2 | 12 |
|---|
| Bohrungskennzeichnung | K - mit Nabennut DIN 6885-1 P9 |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d3 | 26 |
|---|
| b | 14 |
|---|
| l1 | 16 |
|---|
| l2 ≈ | 29 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,125 kg |
|---|

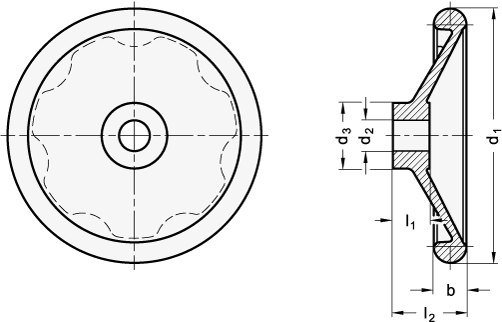

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | DIN 3670 |
|---|
| Order designation | DIN 3670-80-K12 |
|---|
| EAN | 4045525228320 |
|---|
| Manufacturer designation (German) | Scheibenhandräder, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010302 |
|---|
