Technical data (manufacturer information, German terms)
| Größe Nr | 100 |
|---|
| Bohrung d1 | B 7 |
|---|
| Form | F - mit festem Griff |
|---|
| Werkstoff | ST - Stahl |
|---|
| Bohrung | 7 |
|---|
| d2 | 13 |
|---|
| d3 | 16 |
|---|
| d4 | 18 |
|---|
| d5 | 10 |
|---|
| h1 | 13 |
|---|
| h2 ≈ | 31 |
|---|
| Länge l | 25 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,060 kg |
|---|

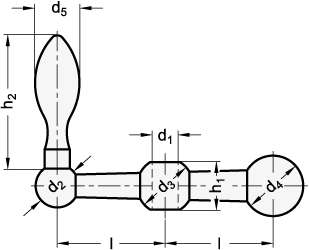

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 10 |
|---|
| Order designation | GN 10-100-B7-F |
|---|
| EAN | 4045525002722 |
|---|
| Manufacturer designation (German) | Kugelkurbeln, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 23010202 |
|---|
