Technical data (manufacturer information, German terms)
| Handraddurchmesser d1 | 60 |
|---|
| Bohrung d2 | B 8 |
|---|
| Form | D - mit drehbarem Knopf |
|---|
| Farbe der Abdeckkappe | DRT - rot, RAL 3000, matt |
|---|
| Werkstoff | PP - Kunststoff |
|---|
| Bohrung | 8 |
|---|
| d3 | 23 |
|---|
| d4 | M 5 |
|---|
| d5 | 16 |
|---|
| b | 20,5 |
|---|
| l1 | 39 |
|---|
| l2 | 20 |
|---|
| l3 | 23 |
|---|
| l4 | 6 |
|---|
| r | 20,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,071 kg |
|---|

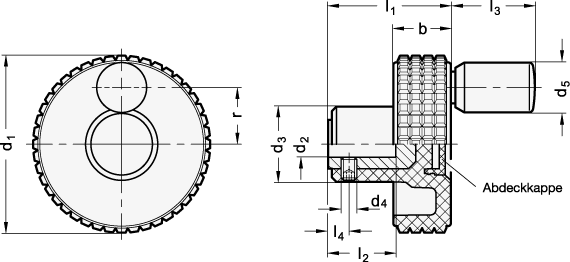

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 735 |
|---|
| Order designation | GN 735-60-B8-D-DRT |
|---|
| EAN | 4045525638020 |
|---|
| Manufacturer designation (German) | Zustellräder, Kunststoff, farbige Abbdeckkappe |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010390 |
|---|
