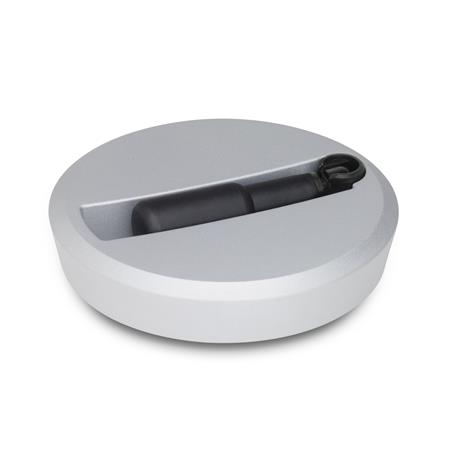

Technical data (manufacturer information, German terms)
| Handraddurchmesser d1 | 200 |
|---|
| Bohrungsdurchmesser d2 | 18 |
|---|
| Bohrungskennzeichnung | K - mit Nabennut DIN 6885-1 P9 |
|---|
| Form | R - mit drehbarem Umleggriff |
|---|
| Farbe | SR - silber, RAL 9006, strukturmatt |
|---|
| Werkstoff | AD - Aluminium-Druckguss |
|---|
| d3 | 23 |
|---|
| d4 | 42 |
|---|
| b | 27 |
|---|
| h | 4 |
|---|
| l1 | 24 |
|---|
| l2 ≈ | 53 |
|---|
| l3 ≈ | 87,5 |
|---|
| r | 80,5 |
|---|
| {Sp:s} Umleggriff | 25 |
|---|
| empfohlene Vorlegescheibe | 184-22 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 1,070 kg |
|---|

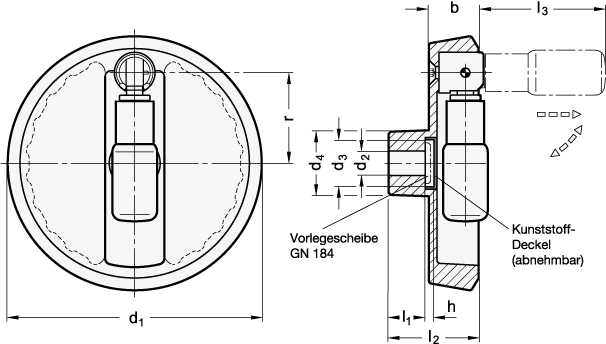

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 923.7 |
|---|
| Order designation | GN 923.7-200-K18-R-SR |
|---|
| EAN | 4045525677890 |
|---|
| Manufacturer designation (German) | Umleggriff-Handräder, Sicherheits-Umleggriff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010302 |
|---|
