Technical data (manufacturer information, German terms)
| Werkstoff | ST - Stahl |
|---|
| Handraddurchmesser d1 | 200 |
|---|
| Bohrungsdurchmesser d2 / s | 14 |
|---|
| Bohrungskennzeichnung | B - ohne Nabennut |
|---|
| Farbe | SW - schwarz, RAL 9005, strukturmatt |
|---|
| Form | A - ohne Griff |
|---|
| s Vierkant | V 14 |
|---|
| b | 22 |
|---|
| d3 | 40 |
|---|
| l1 | 24 |
|---|
| l2 ≈ | 46 |
|---|
| Anzahl der Speichen | 4 |
|---|
| Blechstärke | 2 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,740 kg |
|---|

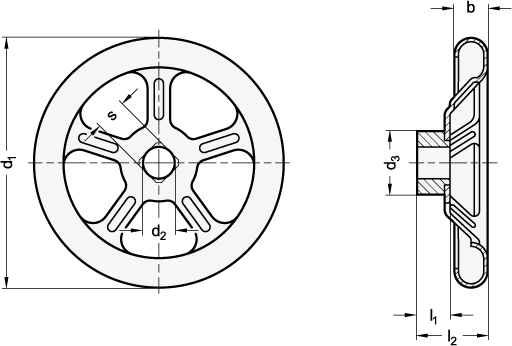

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 228 |
|---|
| Order designation | GN 228-ST-200-B14-A-SW |
|---|
| EAN | 4045525659797 |
|---|
| Manufacturer designation (German) | Handräder, aus Stahlblech |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84819000 |
|---|
| eCl@ss 5.1.4 | 23010301 |
|---|
